JOLLYCOLLA
Manual Glue Dosing Machine

Automatic multifunctional glue dosing machine Jollycolla is designed to spread exact quantities of glue either with continuous or impulse mode.


The precision quantity adjustment is performed by means of potentiometers while the spreading is controlled with a single impulse by means of electric push buttons placed on the gun. The machine is equipped with two large pressurized tanks, one for the product to be applied and one for the washing liquid, with selecting device on the control panel. Available with one or two gluing guns.

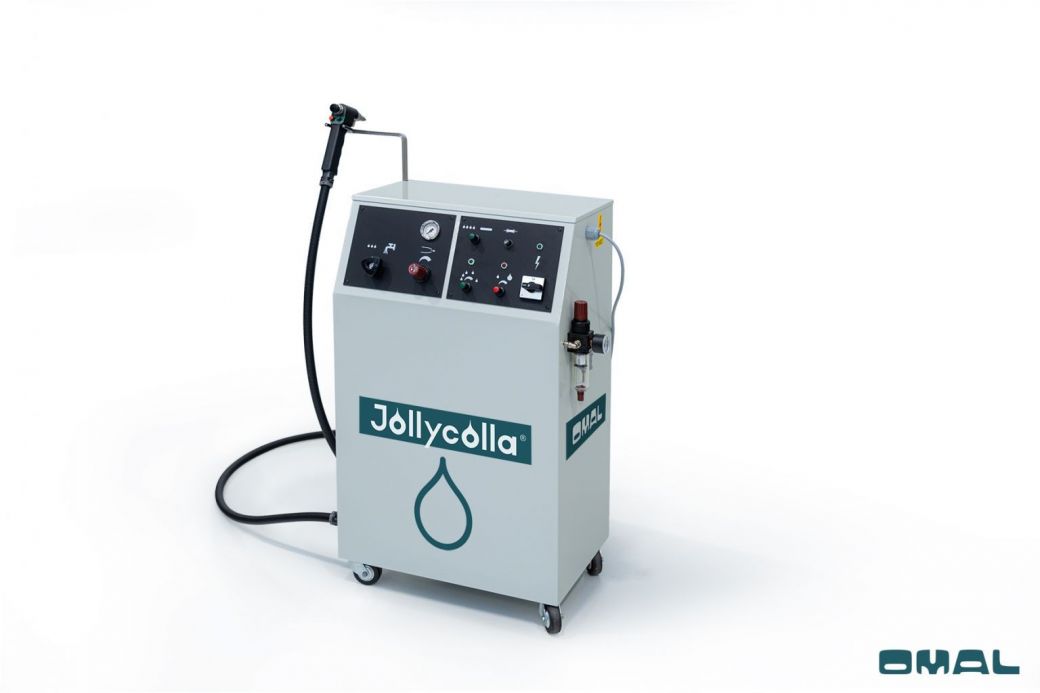

JOLLYCOLLA manual glue dosing machine

A Perfect Complement

A perfect complement for cabinet manufacturers who employ dowel construction or need precise amounts of glue like drawer box assembly, the Jollycolla controls the exact amount of glue to be deposited in the end panel prior to assembly at the case clamp. Manual glue application from a squeeze bottle can result in too much glue and the resultant clean up issues or not enough glue and a starved glue joint and potential joint failure.

JOLLYCOLLA - Advantages

• Glue is applied with no operator effort simply by pushing a button;
• Electronic dosage which guarantees that the exact quantity of glue is always applied;
• Jollycolla works point to point or in continuous mode;
• Easiness and quality of assembling.

JOLLYCOLLA - Premium features

• Adjustment of glue quantity by means of a potentiometer placed on the control panel controlled by electronic card;
• Impulse or continuous mode;
• Two large pressurized tanks, one for glue and the second for water or washing liquid;
• Machine available with one or two guns.

JOLLYCOLLA - Technical data

• Glue tank capacity: 8 l
• Washing tank capacity: 8 l
• Air pressure: 1-6 atm
• Glue density: 1500-4000 cps*
• Feed tube length: 3 m
• Absorbed power: 250 W
• Voltage upon request: Single Phase
• Control voltage: 12 V cc
• Overall dimensions: 600x350x980
• Packing dimensions: 900x400x700
• Net weight: 40 Kg.
• Gross weight: 45 Kg.
